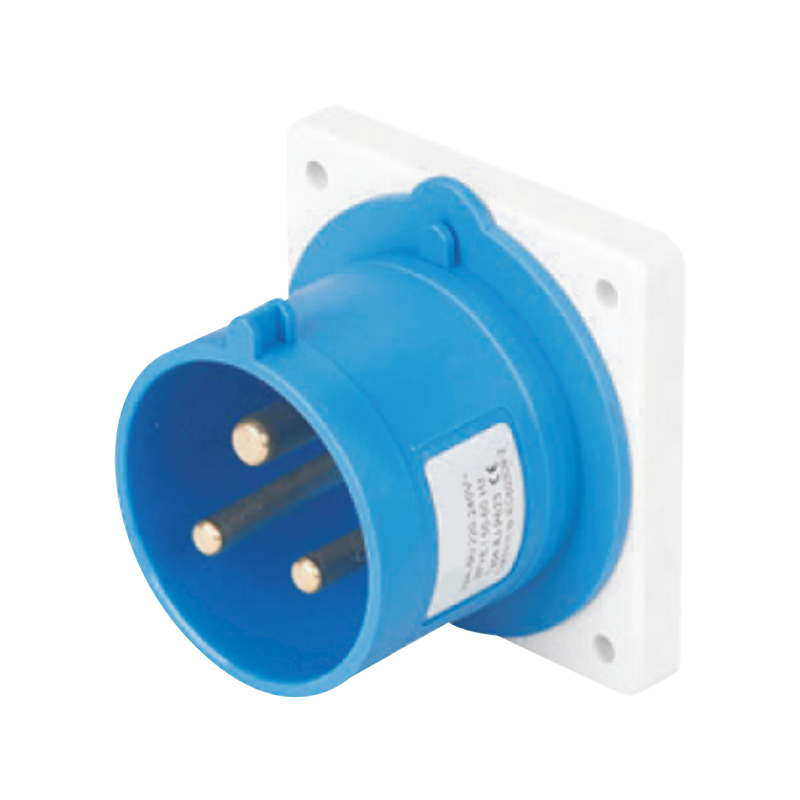

3P16A IP44 industrial waterproof Reverse concealed industrial plug
FNP2-513
Quantity
3P16A IP44 industrial waterproof Reverse concealed industrial plug
Suitable range
This product can be widely used in industry, agriculture, chemistry, airports, docks, ships, metallurgy, electricity, construction, railways, profits and other internal and external places.
Product mix
This product is in accordance with the national standard GB/T 11918.1-2014; GB11918.2-2014; Designed and produced, the product specification is FNP2-513 16A 3pin 220V reverse concealed industrial plug, the plug is 2P+E, the range is 220V, and the product protection level is IP44.
Key material parameters
· Shell material: PA flame retardant nylon
· Material of current-carrying flange: PA flame retardant nylon
· Contacts/screw accessories: copper /ML08A cold heading steel

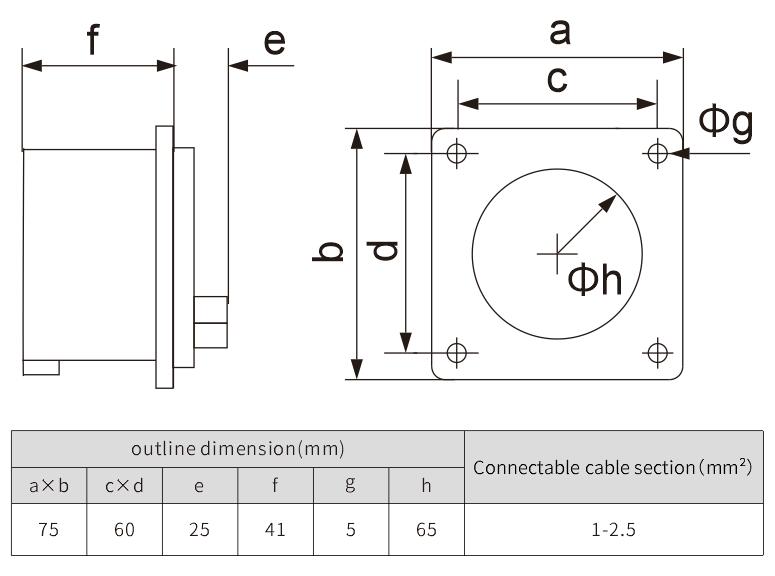

Product outline installation ruler diagram
16A 2P+E 6H 200-250V Protection grade IP44
