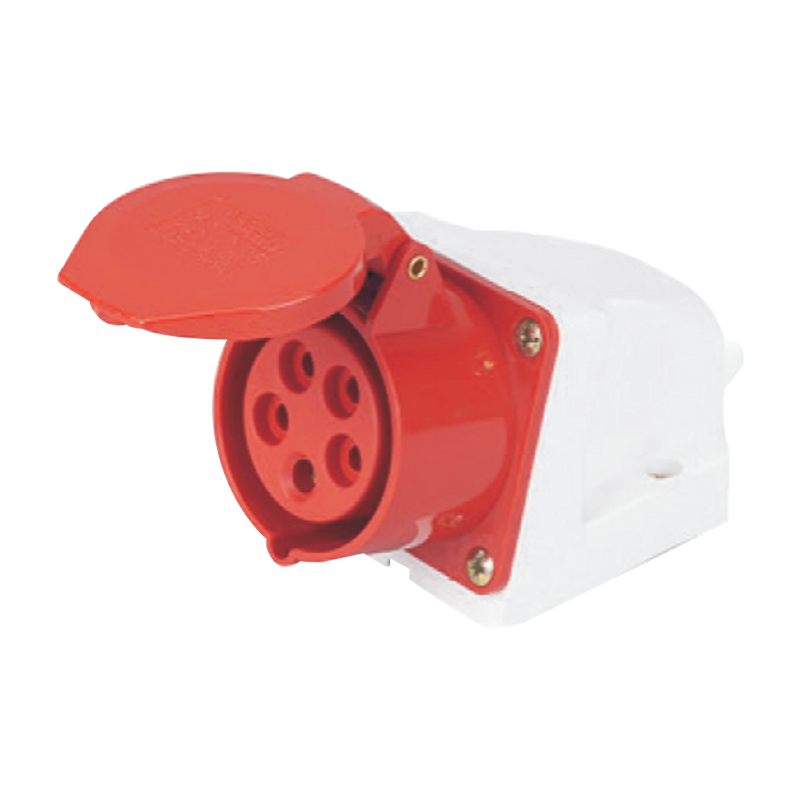

5P16A 6h IP44 industrial waterproof socket
FNP1-115L
Quantity
5P16A 6h IP44 industrial waterproof socket
Suitable range
This product can be widely used in industry, agriculture, chemistry, airports, docks, ships, metallurgy, electricity, construction, railways, profits and other internal and external places.
Product mix
This product is in accordance with the national standard GB/T 11918.1-2014; GB11918.2-2014；Design and production, product specifications are FNP1-115L 16A 5Pin 415V industrial exposed socket, the socket is 3P+N+E, the range is 415V, and the product protection level is IP44.
Key material parameters
· Shell material: PA flame retardant nylon
· Material of current-carrying flange: PA flame retardant nylon
· Contacts/screw accessories: copper /ML08A cold heading steel

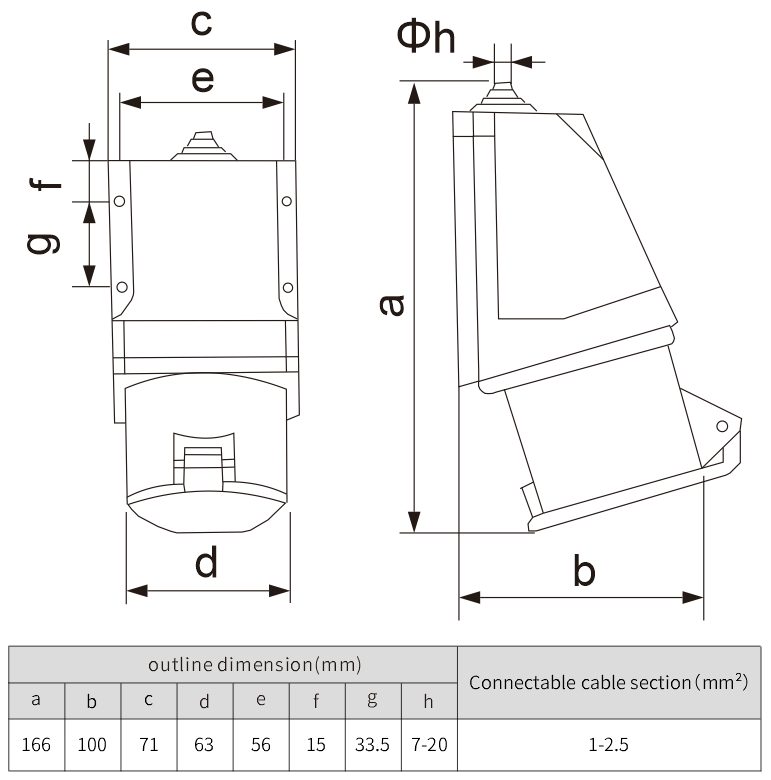

Outline installation ruler diagram
16A 3P+N+E 6H 200-415V Protection degree IP44
