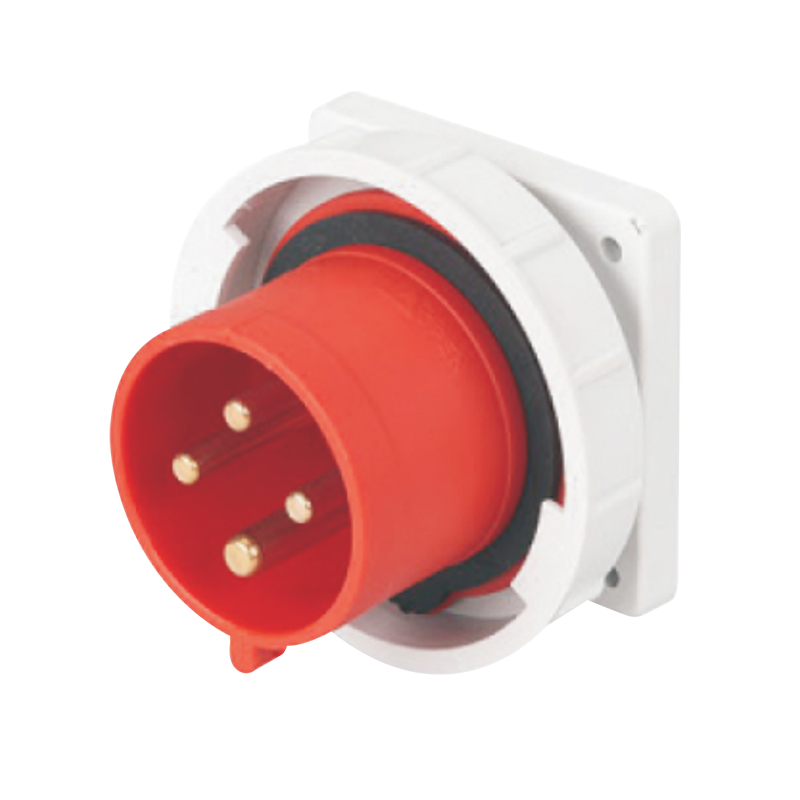

4P16A IP67 industrial waterproof Reverse concealed industrial plug
FNP2-514F
Quantity
4P16A IP67 industrial waterproof Reverse concealed industrial plug
Suitable range
This product can be widely used in industry, agriculture, chemistry, airports, docks, ships, metallurgy, electricity, construction, railways, profits and other internal and external places.
Product mix
This product is in accordance with the national standard GB/T 11918.1-2014; GB11918.2-2014; Designed and produced, the product specification is FNP2-514F 16A 4pin 380V reverse concealed industrial plug, the plug is 3P+E, the range is 380V, and the product protection level is IP67.
Key material parameters
· Shell material: PA flame retardant nylon
· Material of current-carrying flange: PA flame retardant nylon
· Contacts/screw accessories: copper /ML08A cold heading steel
Product outline installation ruler diagram
16A 3P+E 6H 380-415V~ Protection grade IP67
