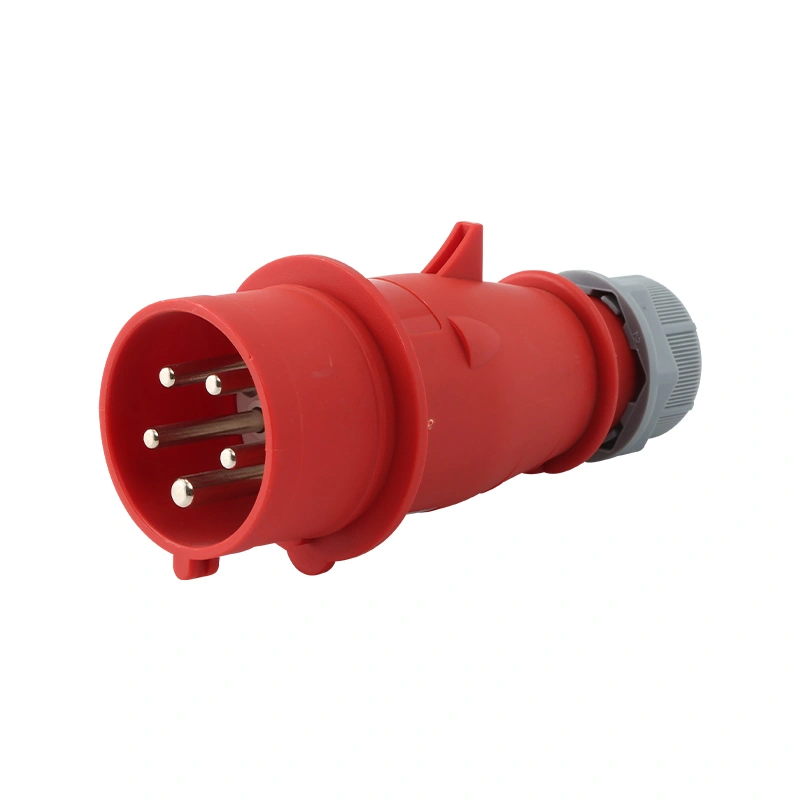

5P16A IP44 Industrial waterproof plug
FNP3-015
minimum order
1 piece
Country of Origin
China
industrial plug
Quantity
5P16A IP44 Industrial waterproof plug
Suitable range
This industrial plug can be widely used in industry, agriculture, chemistry, airports, docks, ships, electricity, construction, profits and other internal and external places.
Product mix
This industrial plug is in accordance with the national standard GB/T 11918.1-2014; GB11918.2-2014；Designed and produced, the product specification is FNP3-015 5pin 16A 415V, the plug is 3P+N+E, the range is 415V, and the product waterproof protection level is IP44.
Key material parameters
· Shell material: PA flame retardant nylon
· Material of current-carrying flange: PA flame retardant nylon
· Contacts/screw accessories: copper /ML08A cold heading steel

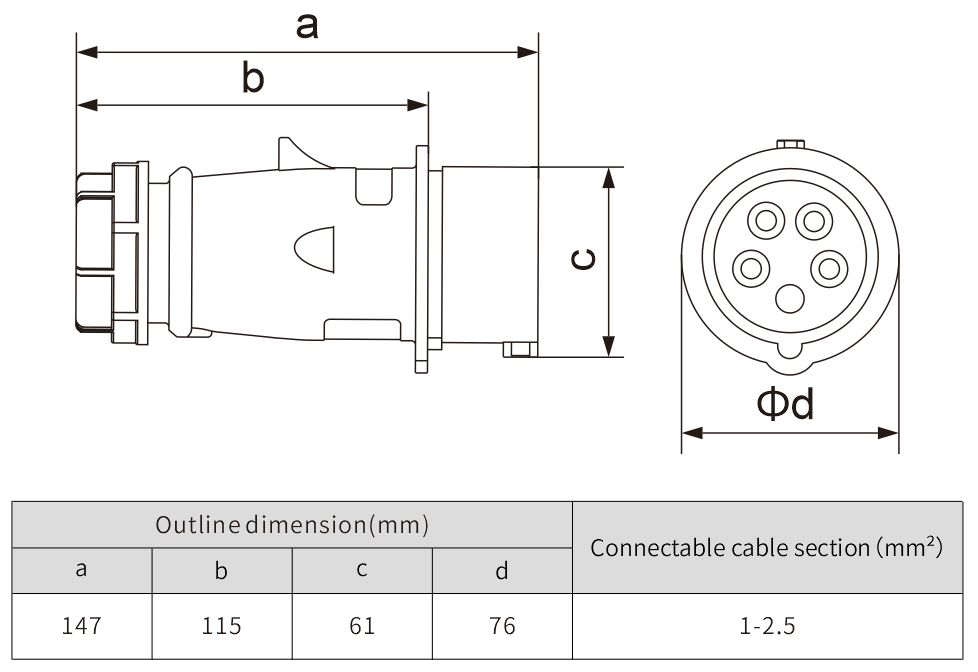

Outline installation ruler diagram
16A 3P+N+E 6H 200-415V Protection degree IP44
