3P32A IP67 industrial waterproof connector
FNP3-223F
Quantity
3P32A IP67 industrial waterproof connector
Suitable range
This industrial connector can be widely used in industry, agriculture, chemistry, airports, docks, ships, electricity, construction, profits and other internal and external places.
product mix
This product is in accordance with the national standard GB/T 11918.1-2014; GB11918.2-2014; Design and production, product specifications are FNP3-223F 32A 3pin 220V industrial connector, the connector is 2P+E, the range is 220V, and the product protection level is IP67.
Key material parameters
· Shell material: PA flame retardant nylon
· Material of current-carrying flange: PA flame retardant nylon
· Contacts/screw accessories: copper /ML08A cold heading steel

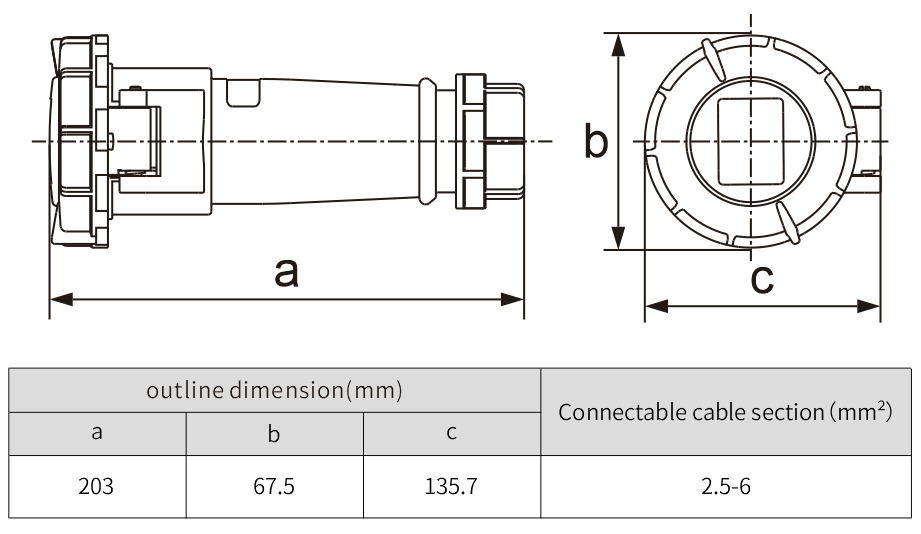

Product outline installation ruler diagram
32A 2P+E 6H 200-250V Protection grade IP67
