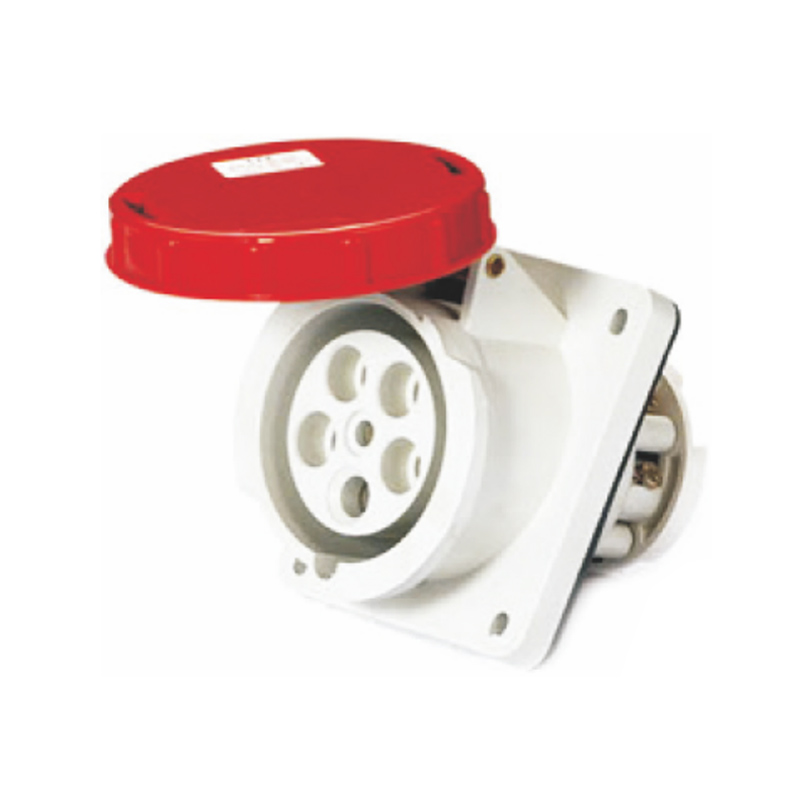

5P125A IP67 industrial waterproof oblique socket
FNP1-445
Quantity
5P125A IP67 industrial waterproof oblique socket
Suitable range
This product can be widely used in industry, agriculture, chemistry, airports, docks, ships, metallurgy, electricity, construction, railways, profits and other internal and external places.
Product mix
This product is in accordance with the national standard GB/T 11918.1-2014; GB11918.2-2014; Designed and produced, the product specification is FNP1-445 125A 5pin 415V concealed socket, the socket is 3P+N+E, the range is 415V, and the product protection level is IP67.
Key material parameters
· Shell material: PA flame retardant nylon
· Material of current-carrying flange: PA flame retardant nylon
· Contacts/screw accessories: copper /ML08A cold heading steel

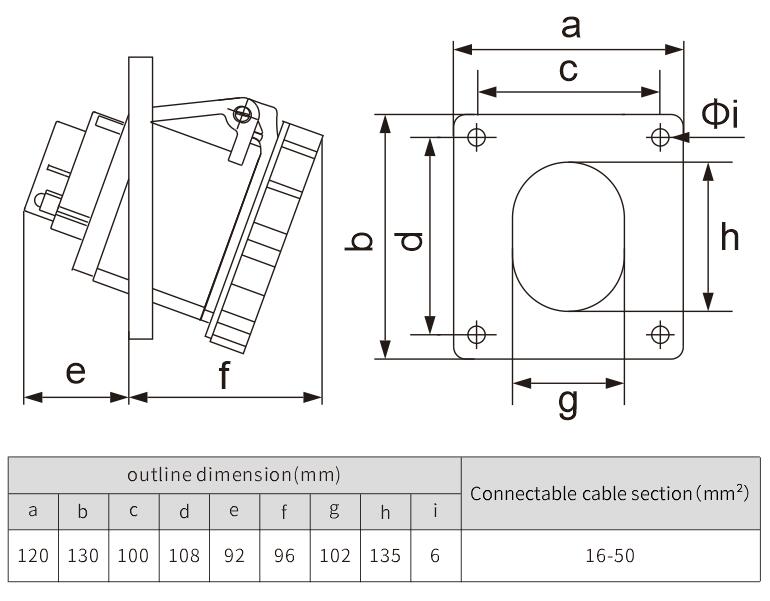

Product outline installation ruler diagram
125A 3P+N+E 6H 200-415V Protection grade IP67
