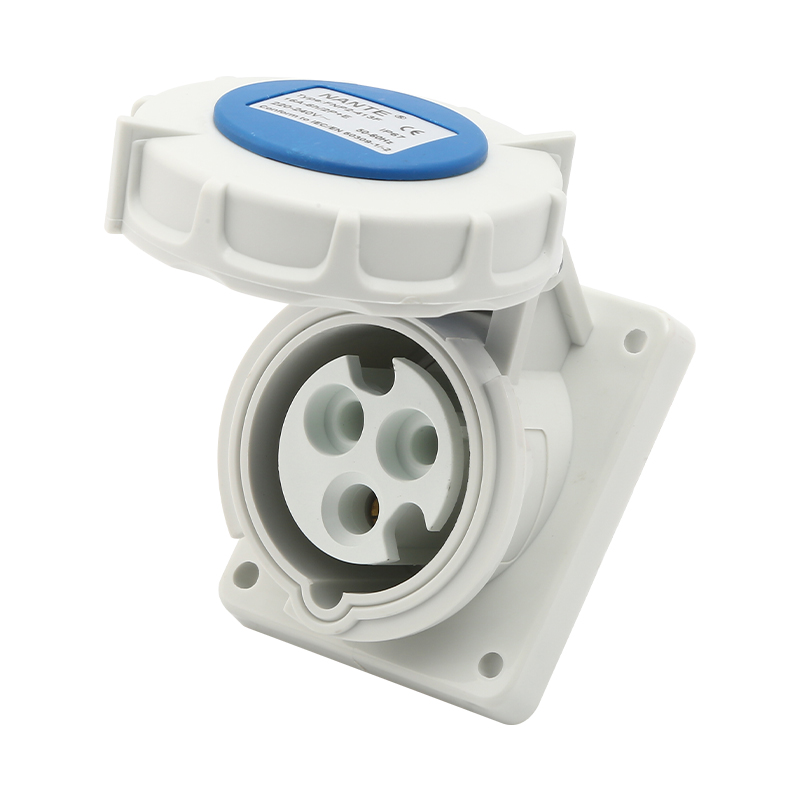

3P32A IP67 industrial waterproof oblique socket
FNP3-423F
Quantity
3P32A IP67 industrial waterproof oblique socket
Suitable range
This product can be widely used in industry, agriculture, chemistry, airports, docks, ships, metallurgy, electricity, construction, railways, profits and other internal and external places.
Product mix
This product is in accordance with the national standard GB/T 11918.1-2014; GB11918.2-2014; Designed and produced, the product specification is FNP3-423F 32A 3pin 220V concealed socket, the socket is 2P+E, the range is 220V, and the product protection level is IP67.
Key material parameters
· Shell material: PA flame retardant nylon
· Material of current-carrying flange: PA flame retardant nylon
· Contacts/screw accessories: copper /ML08A cold heading steel

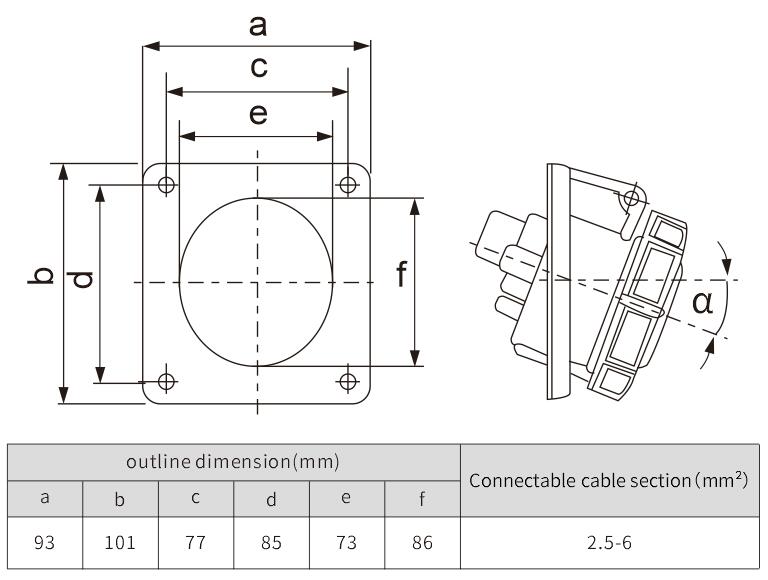

Product outline installation ruler diagram
32A 2P+E 6H 200-250V Protection grade IP67
