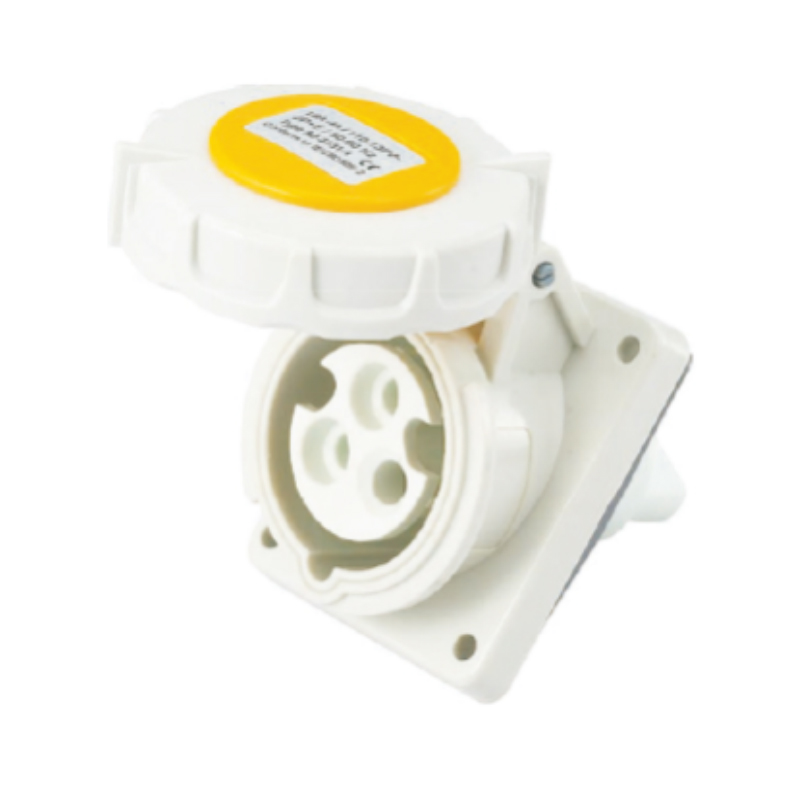

3P32A 4h IP67 industrial waterproof oblique socket
FNP3-423F-4
Quantity
3P32A 4h IP67 industrial waterproof oblique socket
Suitable range
This product can be widely used in industry, agriculture, chemistry, airports, docks, ships, metallurgy, electricity, construction, railways, profits and other internal and external places.
Product mix
This product is in accordance with the national standard GB/T 11918.1-2014; GB11918.2-2014; Designed and produced, the product specification is FNP3-423F-4 32A 3pin 112V concealed socket, the socket is 3P+E, the range is 110V, and the product protection level is IP67.
Key material parameters
· Shell material: PA flame retardant nylon
· Material of current-carrying flange: PA flame retardant nylon
· Contacts/screw accessories: copper /ML08A cold heading steel

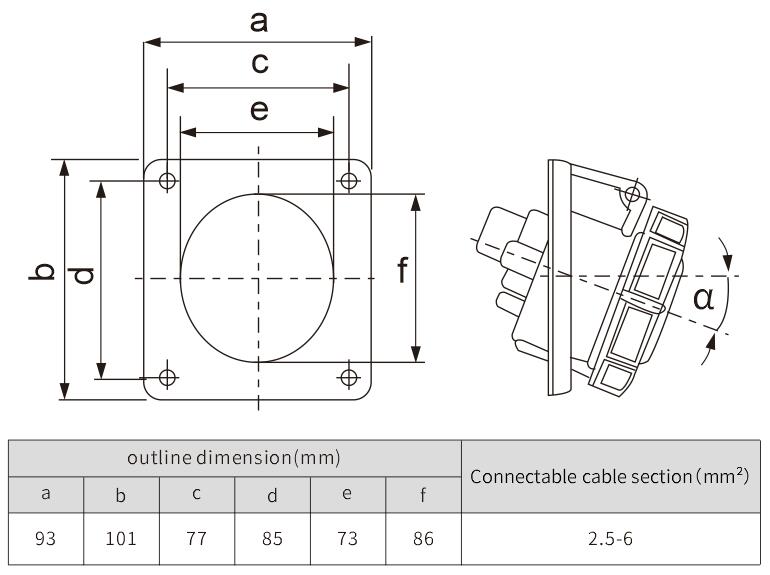

Product outline installation ruler diagram
32A 2P+E 4H 110-130V Protection grade IP67
