5P16A IP67 industrial waterproof connector
FNP3-215F
Quantity
5P16A IP67 industrial waterproof connector
Suitable range
This industrial connector can be widely used in industry, agriculture, chemistry, airports, docks, ships, electricity, construction, profits and other internal and external places.
product mix
This product is in accordance with the national standard GB/T 11918.1-2014; GB11918.2-2014; Design and production, product specifications are FNP3-215F 16A 5pin 415V industrial connector, the connector is 3P+N+E, the range is 415V, and the product protection level is IP67.
Key material parameters
· Shell material: PA flame retardant nylon
· Material of current-carrying flange: PA flame retardant nylon
· Contacts/screw accessories: copper /ML08A cold heading steel

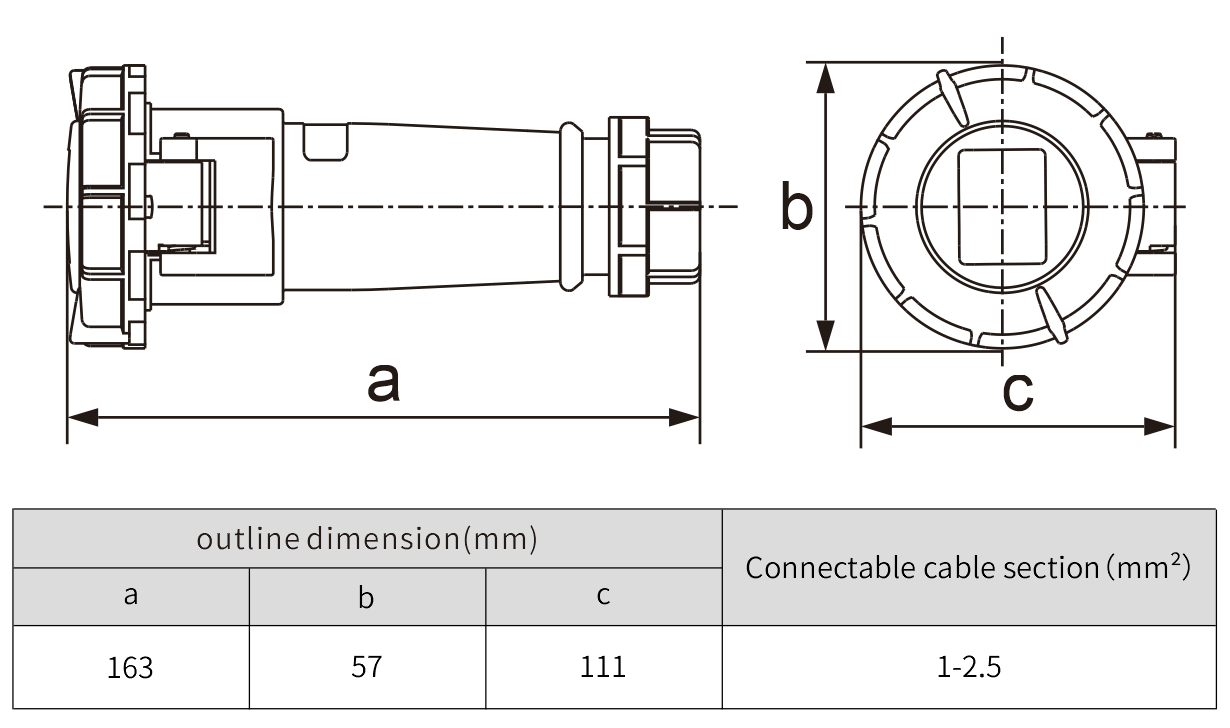

Product outline installation ruler diagram
16A 3P+N+E 6H 200-415V Protection grade IP67
