3P16A 4h IP67 industrial waterproof socket
FNP3-113F-4
Quantity
3P16A 4h IP67 industrial waterproof socket
Suitable range
This product can be widely used in industry, agriculture, chemistry, airports, docks, ships, metallurgy, electricity, construction, railways, profits and other internal and external places.
Product mix
This product is in accordance with the national standard GB/T 11918.1-2014; GB11918.2-2014；Design and production, product specifications are FNP3-113F-4 16A 3Pin 110V industrial exposed socket, the socket is 2P+E, the range is 110V, and the product protection level is IP67.
Key material parameters
· Shell material: PA flame retardant nylon
· Material of current-carrying flange: PA flame retardant nylon
· Contacts/screw accessories: copper /ML08A cold heading steel

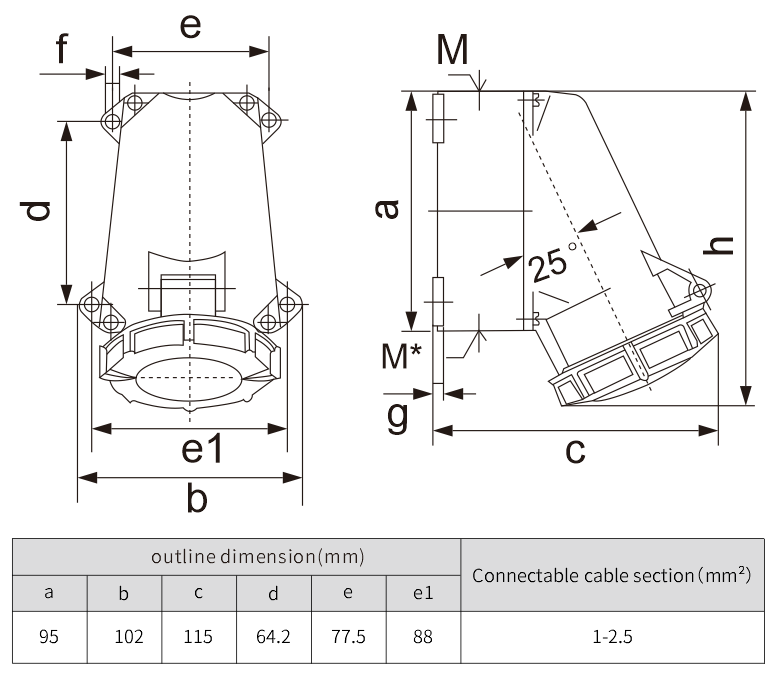

Outline installation ruler diagram
16A 2P+E 4H 110-130V Protection degree IP67
