4P125A IP67 Industrial waterproof socket
FNP1-144
minimum order
1 piece
Country of Origin
China
industrial plug
Quantity
4P125A IP67 Industrial waterproof socket
Suitable range
This product can be widely used in industry, agriculture, chemistry, airports, docks, ships, metallurgy, electricity, construction, railways, profits and other internal and external places.
Product mix
This product is in accordance with the national standard GB/T 11918.1-2014; GB11918.2-2014；Design and production, product specifications are FNP1-144 125A 4Pin 380V industrial exposed socket, the socket is 3P+E, the range is 380V, and the product protection level is IP67.
Key material parameters
· Shell material: PA flame retardant nylon
· Material of current-carrying flange: PA flame retardant nylon
· Contacts/screw accessories: copper /ML08A cold heading steel

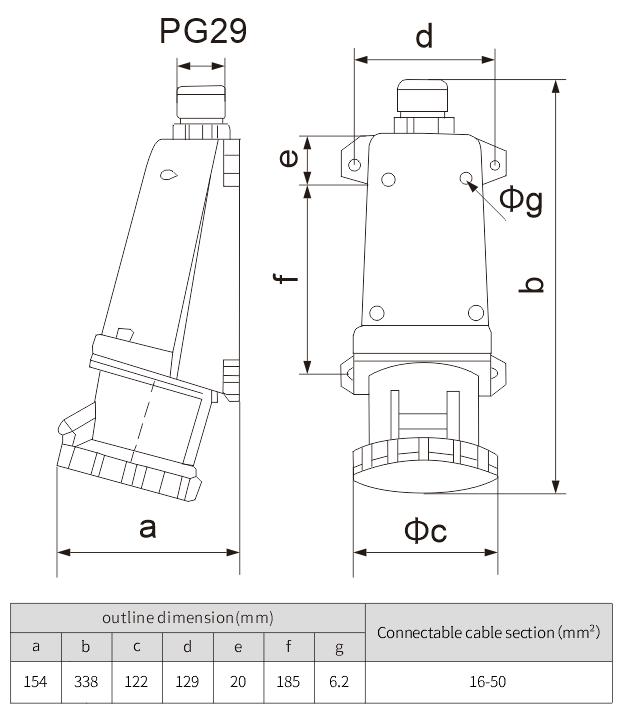

Outline installation ruler diagram
125A 3P+E 6H 380-415V Protection degree IP67
