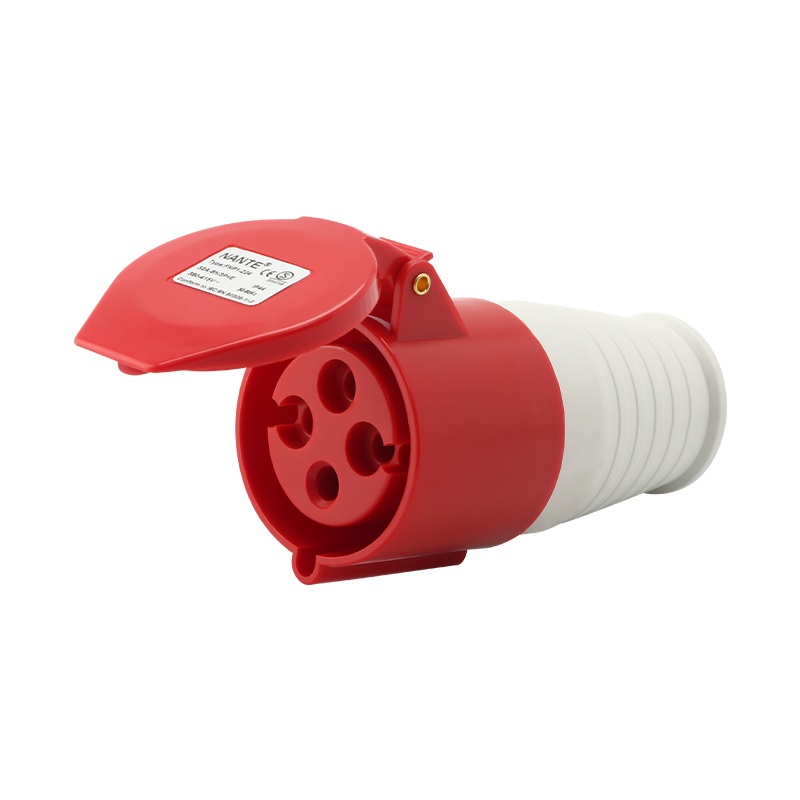

4P16A IP44 industrial waterproof connector
FNP1-214
Quantity
4P16A IP44 industrial waterproof connector
Suitable range
This industrial connector can be widely used in industry, agriculture, chemistry, airports, docks, ships, electricity, construction, profits and other internal and external places.
product mix
This product is in accordance with the national standard GB/T 11918.1-2014; GB11918.2-2014; Design and production, product specifications are FNP1-214 16A 4pin 380V industrial connector, the connector is 3P+E, the range is 380V, and the product protection level is IP44.
Key material parameters
· Shell material: PA flame retardant nylon
· Material of current-carrying flange: PA flame retardant nylon
· Contacts/screw accessories: copper /ML08A cold heading steel

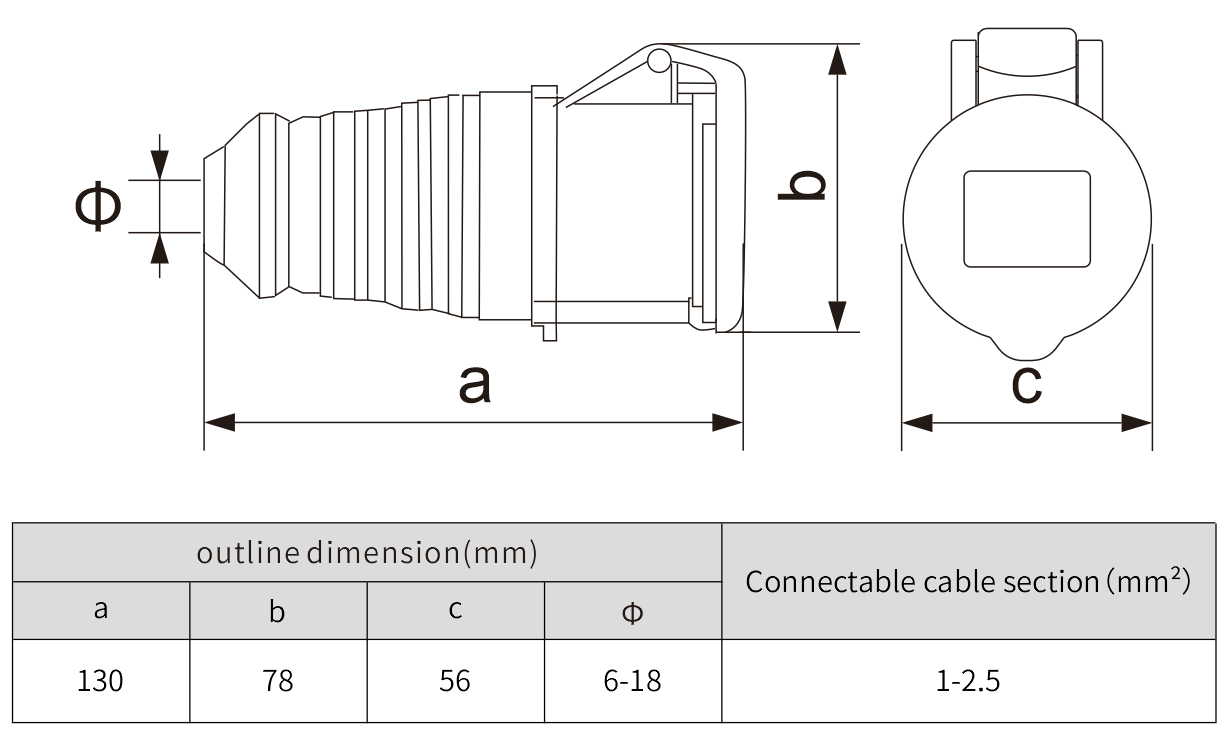

Product outline installation ruler diagram
16A 3P+E 6H 380-415V Protection grade IP44
