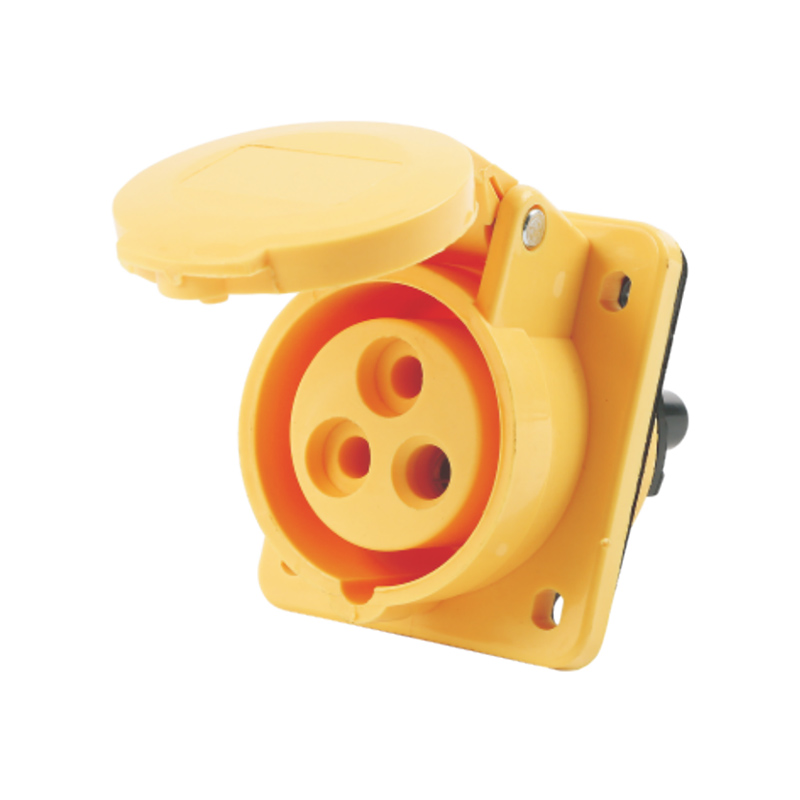

3P16A 4h IP44 industrial waterproof oblique socket
FNP1-413-4
Quantity
3P16A 4h IP44 industrial waterproof oblique socket
Suitable range
This product can be widely used in industry, agriculture, chemistry, airports, docks, ships, metallurgy, electricity, construction, railways, profits and other internal and external places.
Product mix
This product is in accordance with the national standard GB/T 11918.1-2014; GB11918.2-2014; Designed and produced, the product specification is FNP1-413-4 16A 3pin 110V concealed socket, the socket is 2P+E, the range is 110V, and the product protection level is IP44.
Key material parameters
· Shell material: PA flame retardant nylon
· Material of current-carrying flange: PA flame retardant nylon
· Contacts/screw accessories: copper /ML08A cold heading steel
Product outline installation ruler diagram
16A 2P+E 4H 110-130V Protection grade IP44
