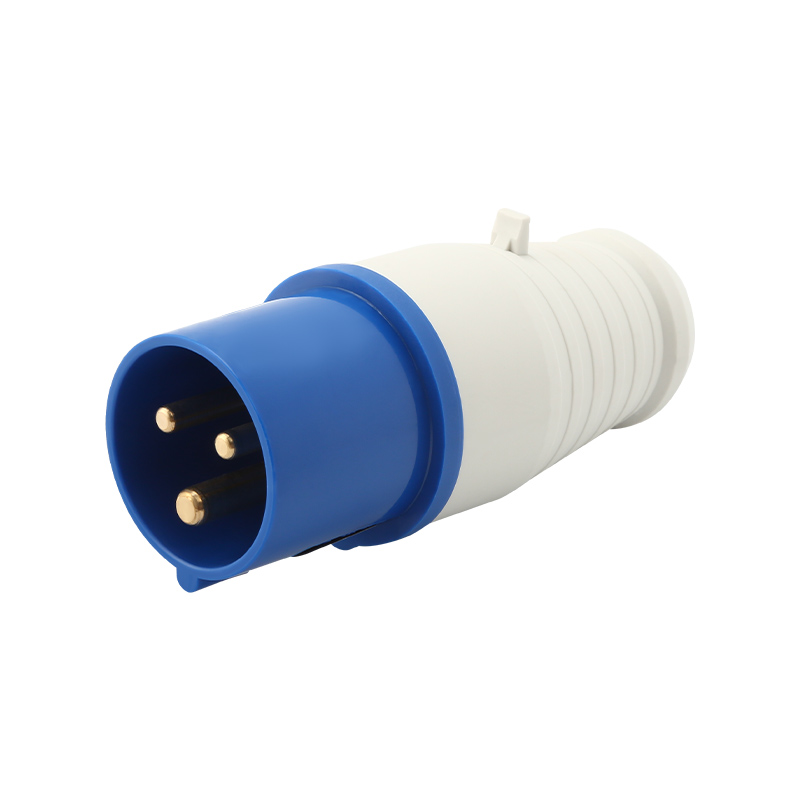

3P16A IP44 Industrial waterproof plug
FNP1-013
minimum order
1 piece
Country of Origin
China
industrial plug
Quantity
3P16A IP44 Industrial waterproof plug
Suitable range
This industrial plug can be widely used in industry, agriculture, chemistry, airports, docks, ships, electricity, construction, profits and other internal and external places
Product mix
This industrial plug is in accordance with the national standard GB/T 11918.1-2014; GB11918.2-2014；Designed and produced, the product specification is FNP1-013 3pin 16A 220V, the plug is 2P+E, the range is 220V, and the product waterproof protection level is IP44.
Key material parameters
· Shell material: PA flame retardant nylon
· Material of current-carrying flange: PA flame retardant nylon
· Contacts/screw accessories: copper /ML08A cold heading steel

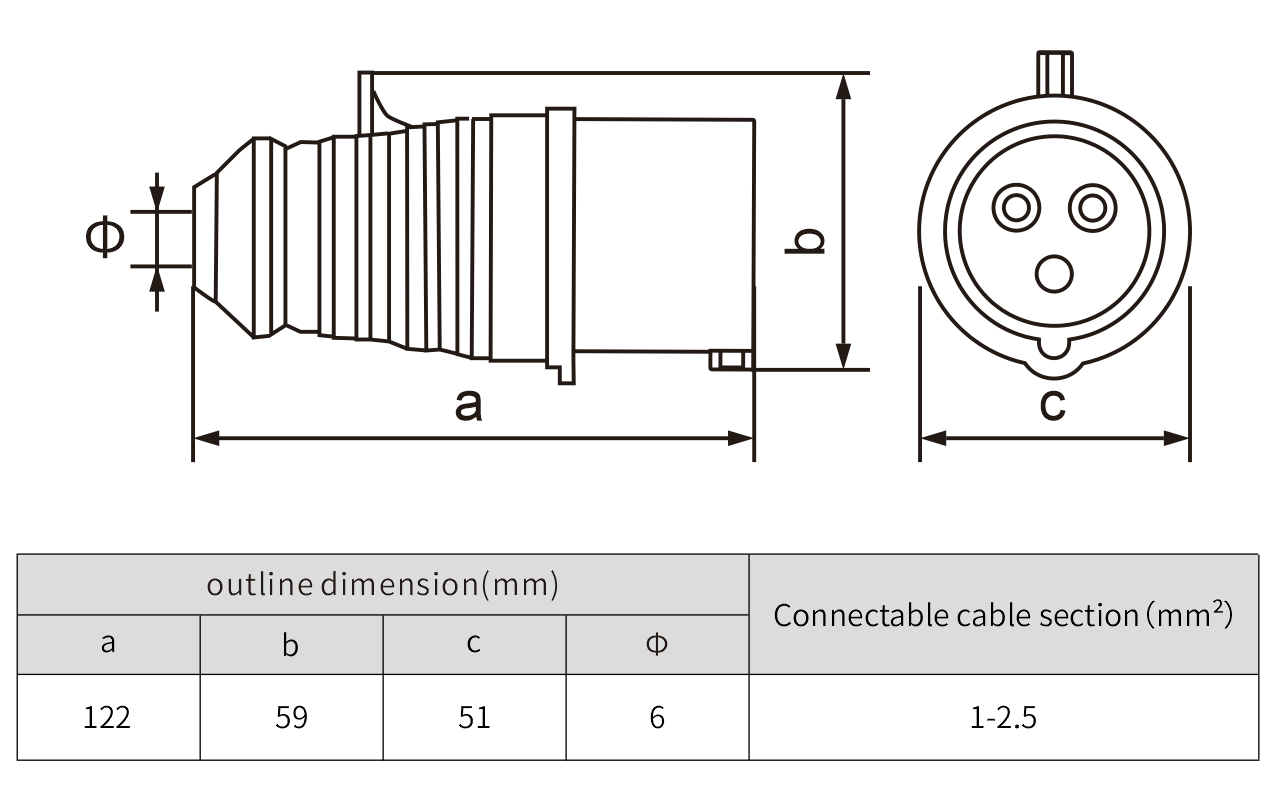

Industrial plug outline installation ruler diagram
16A 2P+E 6H 200-250V Protection degree IP44
